AIO Panel Mount Touch Screen PC 8” Rugged Tablet PC Supporting 24/7 Running

Name: AIO Panel Mount Touch Screen PC 8 Rugged Tablet PC Supporting 247 Running
Brand: ITD/OEM
Price: 1 USD

AIO Panel Mount Touch Screen PC 8” Rugged Tablet PC Supporting 24/7 Running Manufactures

Brand Name : ITD/OEM

Model Number : ITD08PPCT5KJ

Certification : CE/ROHS/FCC

Place of Origin : China

MOQ : 1PCS

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 10000 unit per month

Packaging Details : Foam,gift box,master carton,wooden case,pallet

Model Name : ITD08PPCT5K**

IP Rating : IP65 Front Panel

Touch Technology : Projected Capacitive Touch with 10 touch points

Resolution : 1024x768

bright : 300cd/m2

Viewing angle : 85/85/85/85

light source : LED backlight with 50000 hours' lifetime

Price : TBA

Contact Now

AIO industrial Touch panel PC 8” rugged tablet PC for industrial grade supporting 24/7 running

ITD New Series multi-touch screen HMI comfort panel PC is fully-integrated‚ multi capacitive touch screen combines Android media player, and Projected Capacitive Touch (PCT or PCAP)Technology in TFT LCD flat panels, with sleek and flat front surface commercial design. This PCT technology is a capacitance system that delivers sensitive and accurate 10 multi-touch interactive experiences. The ITD multi-touch HMI comfort panel PC specifically suited for various interactive digital signage applications.

Specifications:

Panel	Cell Type/Glass Surface	TFT
	Size/ Aspect Ratio	8”/4:3
	Active Area/ Pixel Pitch	163(W) x 122.5(H)mm/0.15825 × 0.15825mm
	Native Resolution/ Colors	1024 x 768/16.7M
	Brightness/ Contrast	300cd/㎡/800:1
	Response Time	25ms
	Viewing Angle(Typical)	85/85/85/85
	Light Source	LED Backlight with 50000Hours’Lifetime

SPECIFICATION

System	CPU: ARM Eight-Core RK3368,Main CPU frequency:1.5GHz; Memory: Flash 8Gbit; DDR2, 2Gbit; Graphics Card: Android HD OS: Android 4.4/5.1 Kernel Version: 3.0.28 Storage: USB 2.0 Host; MMC Card: 256Mbyte~ 16Gbyte; SD Card: 256Mbyte~ 16Gbyte Video Output: HDMI video output; Audio Output: dual stereo audio output; Power: External Power Supply DC 12V for 10.1”~24”; Internal Power Supply AC100~240V for 27”~65”
Input / Output	1 x HDMI; 2 x USB 2.0 Host; 1 x RJ45 10/100M
Operating Temperature	-10~60℃
Storage Temperature	-20~70℃
Relative Humidity	10%~90%
Order Information	8”Zero-Bezel Android Panel PC with PCAP Touch/ITD08PPCT5KE1
Order Information	8”Zero-Bezel Android Panel PC with Tempered Glass/ITD08PPCG1KE1

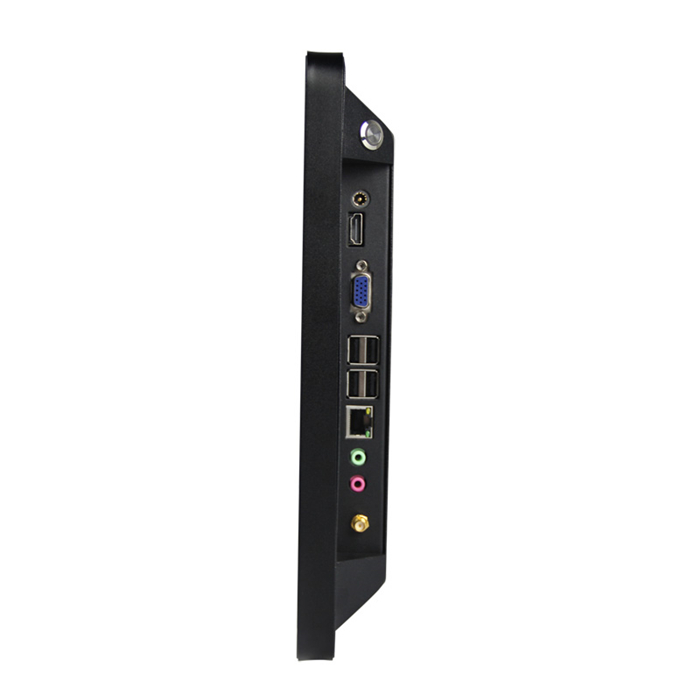

Product Display:

AIO Panel Mount Touch Screen PC 8” Rugged Tablet PC Supporting 24/7 Running

Applications:

Product Tags:

touch panel computer

touch monitor pc

AIO Panel Mount Touch Screen PC 8” Rugged Tablet PC Supporting 24/7 Running Images
